4N22A

Hi-Reliability Optically Coupled Isolator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor TT Electronics OPTEK Technology 4N22A OPTOISO 1KV TRANS W/BASE TO-78-6 DigiKey 0 250 units
$31.94

4N22A Datasheet (338.56 KB)

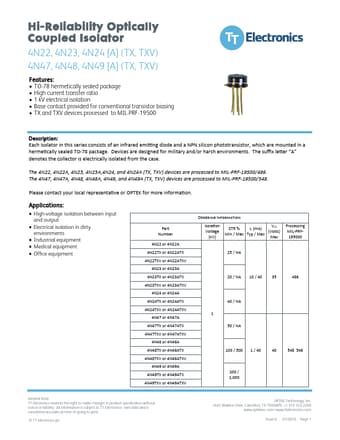

Preview of 4N22A PDF

Datasheet Details

Part number:

4N22A

Manufacturer:

TT

File Size:

338.56 KB

Description:

Hi-reliability optically coupled isolator.

4N22A Features

*  TO-78 hermetically sealed package

*  High current transfer ratio

*  1 kV electrical isolation

*  Base contact provided for conventional transistor biasing

*  TX and TXV devices processed to MIL-PRF-19500 Description: Each isolator in this series consists of an infrared emi n

4N22A General Description

Each isolator in this series consists of an infrared emi ng diode and a NPN silicon phototransistor, which are mounted in a herme cally sealed TO‐78 package. Devices are designed for military and/or harsh environments. The suffix le er “A” denotes the collector is electrically isolated from the case..
