DG16032 Datasheet - OPTO Logic

DG16032 160 x 32 dots Display Module

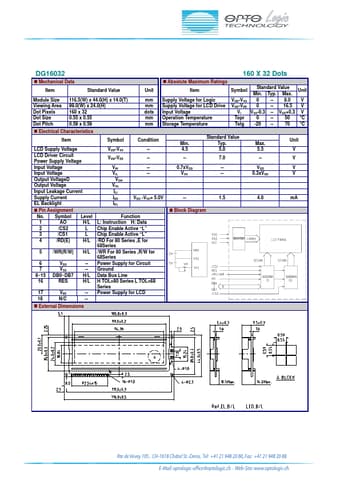

DG16032 160 X 32 Dots Mechanical Data Absolute Maximum Ratings Item Standard Value Unit Item Symbol Standard Value Unit Min. Typ. Max. Module Size Viewing Area Dot Pixels Dot Size Dot Pitch 116.5(W) x 44.0(H) x 14.0(T) 99.0(W) x 24.0(H) 160 x 32 0.55 x 0.55 0.59 x 0.59 mm mm dots mm mm Supply Voltage for Logic VDD-VSS 0 8.0 V Supply Voltage for LCD Drive VDD-VEE 0 16.5 V Input Voltage Operation Temperature VI VSS-0.3 VDD+0.3 V.

DG16032-OPTOLogic.pdf

DG16032 Datasheet Preview — Preview of DG16032 PDF

Datasheet Details

Part number:

DG16032

Manufacturer:

OPTO Logic

File Size:

126.65 KB

Description:

160 x 32 dots display module.
