DG24064 240 x 64 dots Display Module

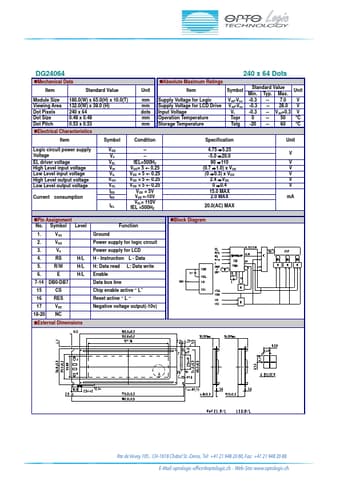

DG24064 Mechanical Data Item Standard Value Module Size 180.0(W) x 65.0(H) x 10.0(T) Viewing Area 132.0(W) x 39.0 (H) Dot Pixels 240 x 64 Dot Size 0.49 x 0.49 Dot Pitch 0.53 x 0.53 Electrical Characteristics Unit mm mm dots mm mm Absolute Maximum Ratings Item Supply Voltage for Logic Supply Voltage for LCD Drive Input Voltage Operation Temperature Storage Temperature 240 x 64 Dots Symbol Vdd-Vss Vdd-Vee VI Topr Tstg Standard Value Unit Min. Typ. Max. -.
