OCP2030

SWITCHING BUCK REGULATOR

OCP2030 Features

* z Precision feedback reference voltage: 0.5V (2%) z Wide supply voltage operating range: 3.0 to 20V z Low current consumption: 5.5mA z Internal fixed oscillator frequency: Typ. 500KHz z Programmable Soft-Start function (SS) z Short Circuit Shutdown and Auto Re-start function(ARSCP) z Built-in P-MOSF

OCP2030 General Description

The OCP2030 is a buck topology of switching regulator for wide operating voltage applications field. The OCP2030 includes a high current P-MOSFET, high precision reference (0.5V) for comparing output voltage with feedback amplifier, an internal dead-time control and oscillator for controlling the ma.

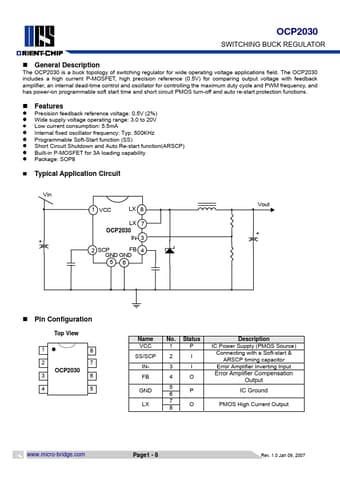

OCP2030 Datasheet (259.89 KB)

Preview of OCP2030 PDF

Datasheet Details

Part number:

OCP2030

Manufacturer:

ORIENT-CHIP

File Size:

259.89 KB

Description:

Switching buck regulator.
