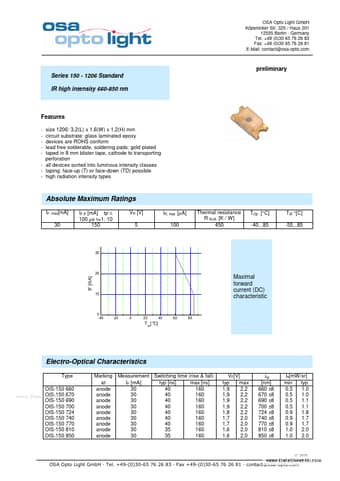

OIS-150660 - Series 150 - 1206 Standard IR high intensity 660-850 nm

Datasheet Details

size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm circuit substrate: glass laminated epoxy devices are ROHS conform lead free solderable, soldering pads: gold plated taped in 8 mm blister tape, cathode to transporting perforation - all devices sorted into luminous intensity classes - taping: face-up (T) or face-down (TD) possible - high radiation intensity types Absolute Maximum Ratings IF, max[mA] 30 IF,P [mA] tp ≤ 100 µs τ=1: 10 150 VR [V] 5 IR, max [µA] 100 Thermal resistance R thJA [K / W] 450 TOp [°C.
