11HS12-0956S Datasheet - OSM

11HS12-0956S Stepper Motor

Stepper Motor 8HS 11HS 14HM 14HS 14HR 16HM 16HS 17HM 17HS 17HT 17HE 23HR 23HM 23HS 23HT 24HS 24HT 34HR 34HS 34HT 34HF 42HS 42HT 28.2mm( 1.11in.) Step Angle 1.8° 11HS High-Torque Type Common Rating Item Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Shaft Radial Play Shaft Axial Play Specification ±5%（full step,no load） ±10% ±20% 80℃Max.(rated current,2 phase on) -10℃-+50℃ 100MΩMin.

11HS12-0956S Datasheet (162.71 KB)

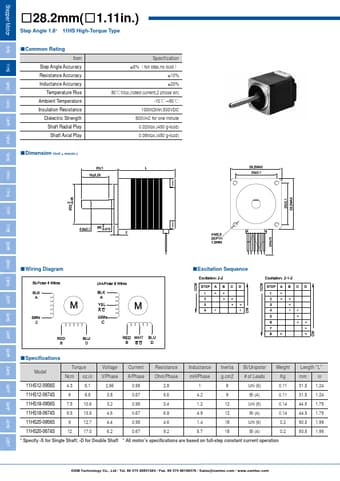

Preview of 11HS12-0956S PDF

Datasheet Details

Part number:

11HS12-0956S

Manufacturer:

OSM

File Size:

162.71 KB

Description:

Stepper motor.
