11HS1002-14

Digital Linear Actuator

11HS1002-14 Datasheet (100.79 KB)

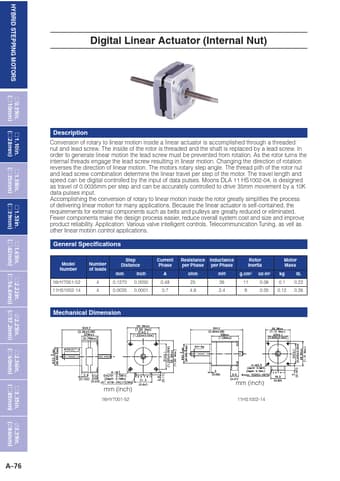

Preview of 11HS1002-14 PDF

Datasheet Details

Part number:

11HS1002-14

Manufacturer:

ETC

File Size:

100.79 KB

Description:

Digital linear actuator.
HYBRID STEPPING MOTORS Digital Linear Actuator (Internal Nut) ƶ0.39in. ƶ1.10in. ƶ1.38in. ƶ1.53in. ƶ1.65in. ƶ2.22in. ‡2.25in. ƶ2.36in. ƶ3.35in. ‡3.39.

11HS1002-14 General Description

Conversion of rotary to linear motion inside a linear actuator is accomplished through a threaded nut and lead screw. The inside of the rotor is threaded and the shaft is replaced by a lead screw. In order to generate linear motion the lead screw must be prevented from rotation. As the rotor turns t.
