23HS22-2804S Datasheet - OSM

23HS22-2804S Stepper Motor

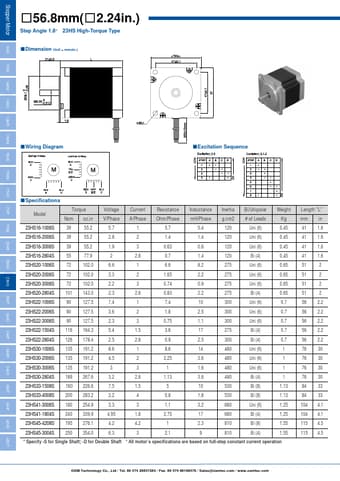

Stepper Motor 8HS 11HS 14HM 14HS 14HR 16HM 16HS 17HM 17HS 17HT 17HE 23HR 23HM 23HS 23HT 24HS 24HT 34HR 34HS 34HT 34HF 42HS 42HT 56.8mm( 2.24in.) Step Angle 1.8° 23HS High-Torque Type Dimension Unit = mm(in.) Wiring Diagram   Excitation Sequence Specifications Model Torque Ncm oz.in 23HS16-1006S 39 55.2 23HS16-2006S 39 55.2 23HS16-3006S 39 55.2 23HS16-2804S 55 77.9 23HS20-1006S 72 102.0 23HS20-2006S 72 102.0 23HS20-3006S 72 102.0 23HS20-2804S.

23HS22-2804S Datasheet (116.44 KB)

Preview of 23HS22-2804S PDF

Datasheet Details

Part number:

23HS22-2804S

Manufacturer:

OSM

File Size:

116.44 KB

Description:

Stepper motor.
