24HS34-4004S Stepper Motor

Stepper Motor 8HS 11HS 14HM 14HS 14HR 16HM 16HS 17HM 17HS 17HT 17HE 23HR 23HM 23HS 23HT 24HS 24HT 34HR 34HS 34HT 34HF 42HS 42HT 60mm( 2.36in.) Step Angle 1.8° 24HS High-Torque Type Common Rating Item Step Angle Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Specification ±5%（full step,no load） 80℃Max.(rated current,2 phase on) -10℃-+50℃ 100MΩMin.500VDC 500VAC for one minute Dimension Unit = mm(in.) Wiring Diagram

24HS34-4004S Datasheet (153.52 KB)

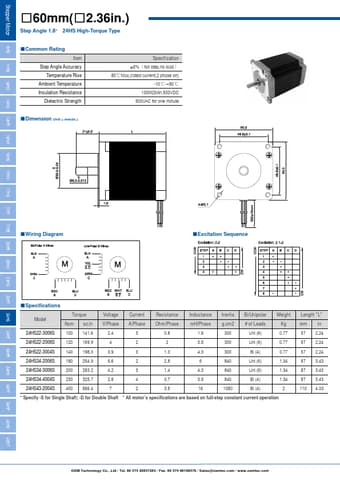

24HS34-4004S Datasheet Preview — Preview of 24HS34-4004S PDF

Datasheet Details

Part number:

24HS34-4004S

Manufacturer:

OSM

File Size:

153.52 KB

Description:

Stepper motor.
