OV2685 - color CMOS UXGA (1600 x 1200) image sensor

OmniVision

📥 Download Datasheet

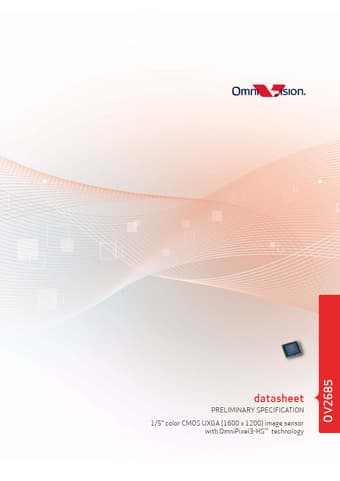

OV2685 Datasheet Preview — Preview of OV2685 PDF

Datasheet Details

Part number: OV2685
Manufacturer: OmniVision
File Size: 950.18 KB
Datasheet: OV2685-OmniVision.pdf
Description: color CMOS UXGA (1600 x 1200) image sensor

OV2685 Product details

Description

2 system level description 2.1 overview 2.2 architecture 2.3 video timing overview 2.4 pixel array addresses 2.5 mirror and flip 2.6 format and frame rate control 2.7 integration time control (electronic shutter control) 2.8 black level calibration 2.9 PLL and clock generator 2.10 MIPI interface 3 image sensor core digital functions 3.1 serial camera control bus (SCCB) 3.1.1 data transfer protocol 3.1.2 message format 3.1.3 read / write operation 3.2 exposure and gain control 3.3 general purpos

Features

1.75 µm x 1.75 µm pixel with OmniPixel-3HS™ technology optical size of 1/5" 28.0° CRA supports images sizes: UXGA (1600H x 1200V), 1600 HD+ (1600H x 900V), SXGA(1280H x 960V), 720p (1280H x 720V), and more support for output formats: 10-bit RGB RAW, 8-bit YUV 2MP at 30 fps programmable controls for frame rate, mirror and flip, cropping, and windowing two-wire serial bus control (SCCB) MIPI serial output interface (2-lane MIPI) automatic image control functions: automatic exp.
