E6C2-C Incremental Rotary Encoder

*Incorporates ends different to each other in diameter Metal construction Flange g Servo mounting bracket * *Provided with the E69-FCA02 flange Part number E69-C06B E69-C68B E69-C06M E69-FCA E69-FCA-02 E69-2 E6C2-C E6C2-C Specifications J RATINGS/CHARACTERISTICS Electrical .

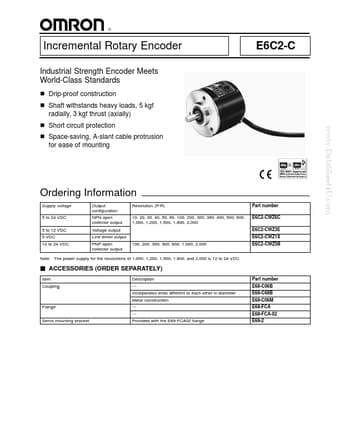

R Incremental Rotary Encoder Industrial Strength Encoder Meets World-Class Standards H Drip-proof construction H Shaft withstands heavy loads, 5 kgf radially, 3 kgf thrust (axially) E6C2-C H Short circuit protection H Space-saving, A-slant cable protrusion for ease of mounting www.DataSheet4U.com Ordering Information Supply voltage 5 to 24 VDC 5 to 12 VDC 5 VDC 12 to 24 VDC Output configuration NPN open collector output Voltage output Line driver output PNP open collector output 100, 200, 3.

E6C2-C Features

* C) Output phase A Output phase B Output phase Z 0 V (common) E6C2
