G2R-2-SN - PCB Relay A Power Relay

Mounting track 50 cm ( ) x 7.3 mm (t): PFP-50N 1 m ( ) x 7.3 mm (t): PFP-100N 1 m ( ) x 16 mm (t): PFP-100N2 8 8 8 Model End plate Spacer Back connecting socket Mounting plate PFP-M PFP-S P2R-P * *Used to mount several P2R-05A and P2R-08A connecting sockets side by side.

142 G2R G2R

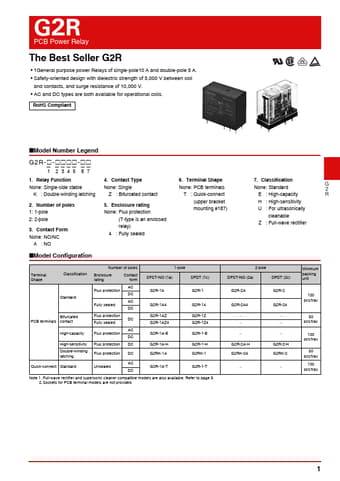

PCB Relay A Power Relay for a Variety of Purposes with Various Models Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO.

I Meets VDE0700 requirements for household products according to VDE0110.

I Clearance and creepage distance: 8 mm/8 m.

I Models with CTI250 material available.

I High-sensitivity (360 mW) and high-capacity www.DataSheet4U.com (16 A) types available.

I Double-winding latching type available.

I Plug-in with test button and quick-connect termin

G2R-2-SN Features

* AC, 125 VDC 4A 1,000 VA, 120 W 10 mA at 5 VDC 375 VA, 75 W 5A 380 VAC, 125 VDC 5A 1,250 VA, 150 W 1 mA at 5 VDC 500 VA, 90 W Max. switching voltage 380 VAC, 125 VDC Max. switching cur
