G2R-2-S General-purpose Relay

Model 50 cm (l) × 7.3 mm (t): PFP-50N Mounting track 1 m (l) × 7.3 mm (t): PFP-100N Track-connecting Socket 1 m (l) × 16 mm (t): PFP-100N2 End plate *1 PFP-M Spacer PFP-S Back-connecting Socket Mounting plate *2 P2R-P *1. When mounting DIN rail, please use End Plate (PFP-M). .

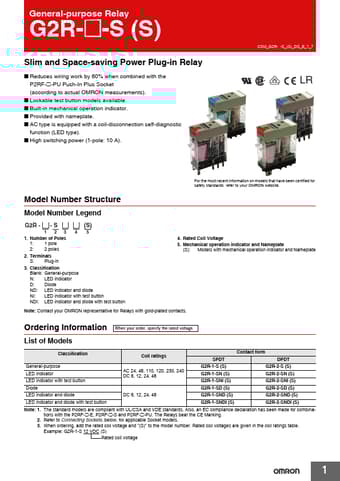

G2R-@-S (S) General-purpose Relay Slim and Space-saving Power Plug-in Relay Reduces wiring work by 60% when combined with the P2RF-@-PU Push-In Plus Socket (according to actual OMRON measurements). Lockable test button models available. Built-in mechanical operation indicator. Provided with nameplate. AC type is equipped with a coil-disconnection self-diagnostic function (LED type). High switching power (1-pole: 10 A). CSM_G2R-_-S_(S)_DS_E_1_7 LR For the mos.

G2R-2-S Datasheet (1.88 MB)
