OB2136 650V 3-Phase Half-Bridge Gate-Driver IC

OB2136 is a monolithic three-phase half-bridge gate driver IC designed for high voltage, high speed, driving MOSFETs and IGBTs operating up to 650V. OB2136 uses high voltage process and common mode noise canceling technique provides stable operation of high-side drivers under high dV/dt noise circum.

OB2136 Features

* x Floating channel for bootstrap operation up to 650V x Positive input logic, and 3.3V / 5V input logic compatible x Enable/ Disable control x Built-in low-side supply under voltage lockout (UVLO) and over voltage protection (OVP) x Built-in high side supply under voltage lockout (UVLO) x Built-in c

OB2136-On-BrightElectronics.pdf

This datasheet PDF includes multiple part numbers: OB2136, OB2136-On. Please refer to the document for exact specifications by model.

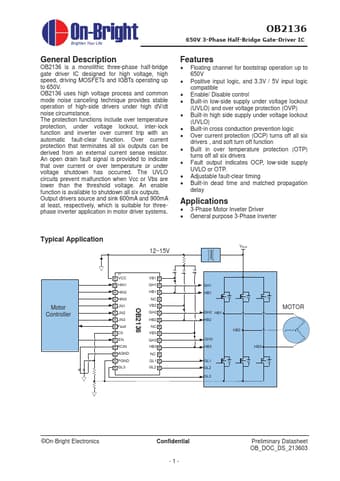

OB2136 Datasheet Preview Page 2 OB2136 Datasheet Preview Page 3

Datasheet Details

Part number:

OB2136, OB2136-On

Manufacturer:

On-Bright Electronics

File Size:

75.94 KB

Description:

650v 3-phase half-bridge gate-driver ic.

Note:

This datasheet PDF includes multiple part numbers: OB2136, OB2136-On.
Please refer to the document for exact specifications by model.
