OB2365T

High Performance Current Mode PWM Power Switch

OB2365T Datasheet (808.71 KB)

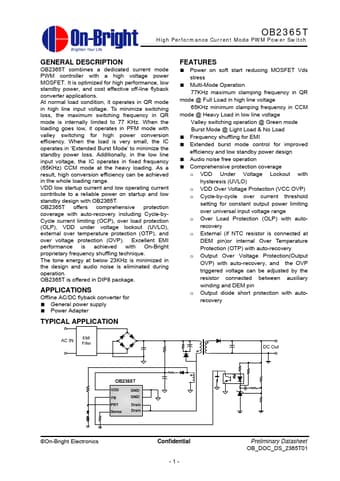

Preview of OB2365T PDF

Datasheet Details

Part number:

OB2365T

Manufacturer:

On-Bright Electronics

File Size:

808.71 KB

Description:

High performance current mode pwm power switch.

OB2365T Features

* Power on soft start reducing MOSFET Vds stress

* Multi-Mode Operation 77KHz maximum clamping frequency in QR mode @ Full Load in high line voltage 65KHz minimum clamping frequency in CCM mode @ Heavy Load in low line voltage Valley switching operation @ Green mode Burst Mode @ Light Load &

OB2365T General Description

OB2365T combines a dedicated current mode PWM controller with a high voltage power MOSFET. It is optimized for high performance, low standby power, and cost effective off-line flyback converter applications. At normal load condition, it operates in QR mode in high line input voltage. To minimize swi.
