OB2365A

Adaptive Multi-Mode PWM Controller

OB2365A Datasheet (750.26 KB)

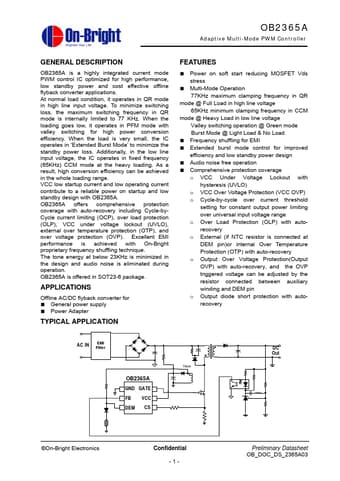

Preview of OB2365A PDF Datasheet

Datasheet Details

Part number:

OB2365A

Manufacturer:

On-Bright Electronics

File Size:

750.26 KB

Description:

Adaptive multi-mode pwm controller.

OB2365A Features

* Power on soft start reducing MOSFET Vds stress

* Multi-Mode Operation 77KHz maximum clamping frequency in QR mode @ Full Load in high line voltage 65KHz minimum clamping frequency in CCM mode @ Heavy Load in low line voltage Valley switching operation @ Green mode Burst Mode @ Light Load &

OB2365A General Description

OB2365A is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications. At normal load condition, it operates in QR mode in high line input voltage. To minimize switching loss, the maximum switching frequ.
