OB2263AP - Current Mode PWM Controller

Product Overview

On-Bright

Datasheet Details

Part number	OB2263AP
Manufacturer	On-Bright
File Size	313.13 KB
Description	Current Mode PWM Controller
Datasheet	OB2263AP Datasheet
Note	This datasheet PDF includes multiple part numbers: OB2263AP, OB2263_On. Please refer to the document for exact specifications by model.

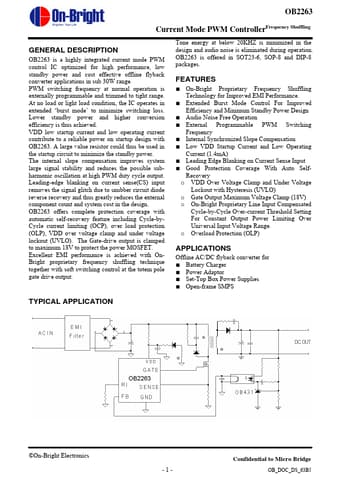

Additional preview pages of the OB2263AP datasheet.

Product details

Description

OB2263 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications in sub 30W range.

Features

On-Bright Proprietary Frequency Shuffling Technology for Improved EMI Performance.
Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design.
Audio Noise Free Operation.
External Programmable PWM Switching Frequency.
Internal Synchronized Slope Compensation.
Low VDD Startup Current and Low Operating Current (1.4mA).
Leading Edge Blanking on Current Sense Input.
Good Protection Coverage With Auto Self- Recovery o VDD Over Voltag.
