OB5682PASP, OB5682MMKP-H-On, High Precision LED Off-line LED Power Switch

OB5682x High Precision LED Off-line LED Power Switch GENERAL .
OB5682x is a primary side regulation off-line LED lighting power switch which can achieve accurate LED current.

datasheet Preview Page 1 from Datasheet4u.com

OB5682MMKP-H-On-Bright.pdf

OB5682PASP Datasheet Preview — This datasheet PDF includes multiple part numbers: OB5682PASP, OB5682MMKP-H-On. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OB5682PASP, OB5682MMKP-H-On

Manufacturer:

On-Bright

File Size:

972.15 KB

Description:

High Precision LED Off-line LED Power Switch

Note:

This datasheet PDF includes multiple part numbers: OB5682PASP, OB5682MMKP-H-On.
Please refer to the document for exact specifications by model.

Features

* including LED open circuit protection, LED short circuit protection, Cycle-by-Cycle current limiting, and thermal foldback, etc. OB5682x is offered in SOT33-5(A)/SOP7/DIP7/ CDFN8-7 package. FEATURES
* HV startup without power supply capacitor
* Low System Cost and High Efficiency
* Low

Applications

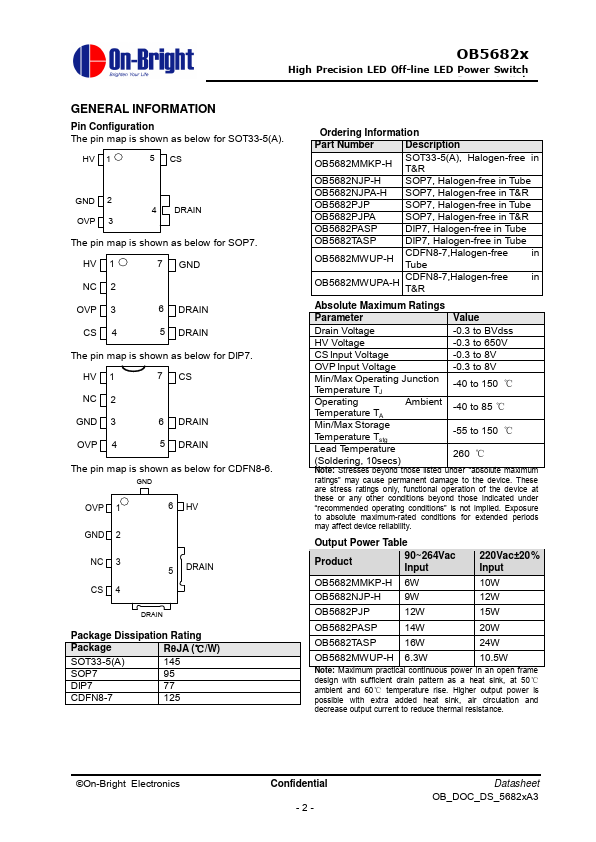

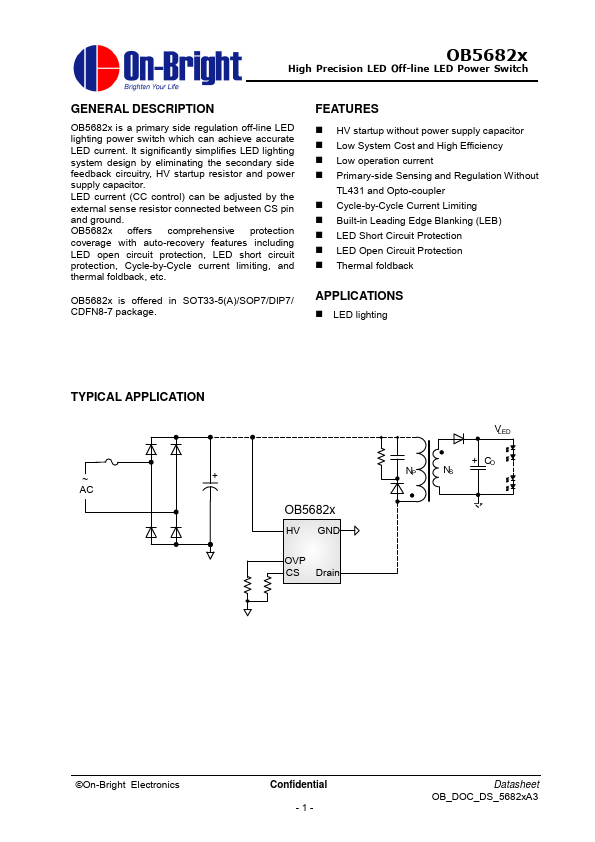

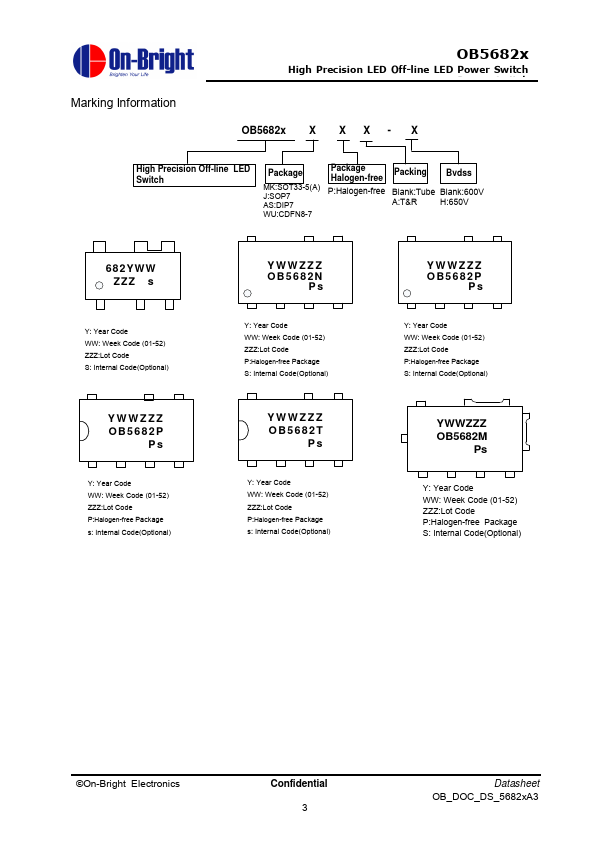

* LED lighting TYPICAL APPLICATION ~ + AC OB5682x HV GND OVP CS Drain VLED + CO NP NS ©On-Bright Electronics Confidential -1- Datasheet OB_DOC_DS_5682xA3 OB5682x High Precision LED Off-line LED Power Switch Power Switch GENERAL INFORMATION Pin Configuration The pin map is shown as
