OB5682PJP, OB5682MMKP-H-On - High Precision LED Off-line LED Power Switch

On-Bright

📥 Download Datasheet

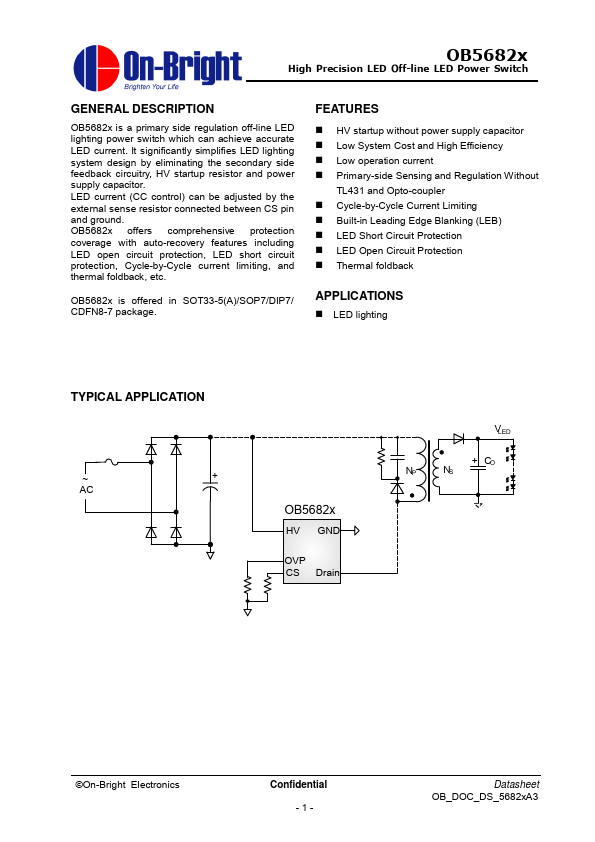

OB5682PJP Datasheet Preview — This datasheet PDF includes multiple part numbers: OB5682PJP, OB5682MMKP-H-On. Please refer to the document for exact specifications by model.

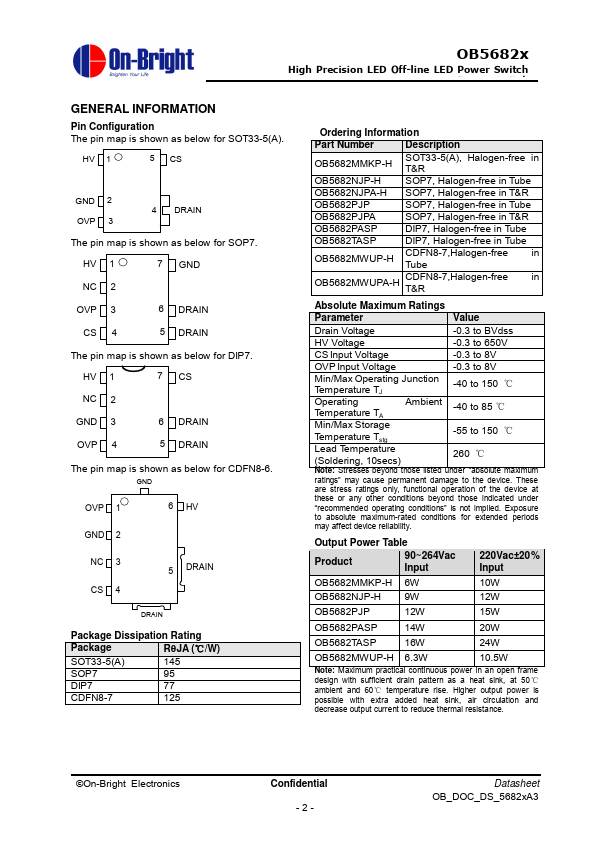

datasheet Preview Page 2

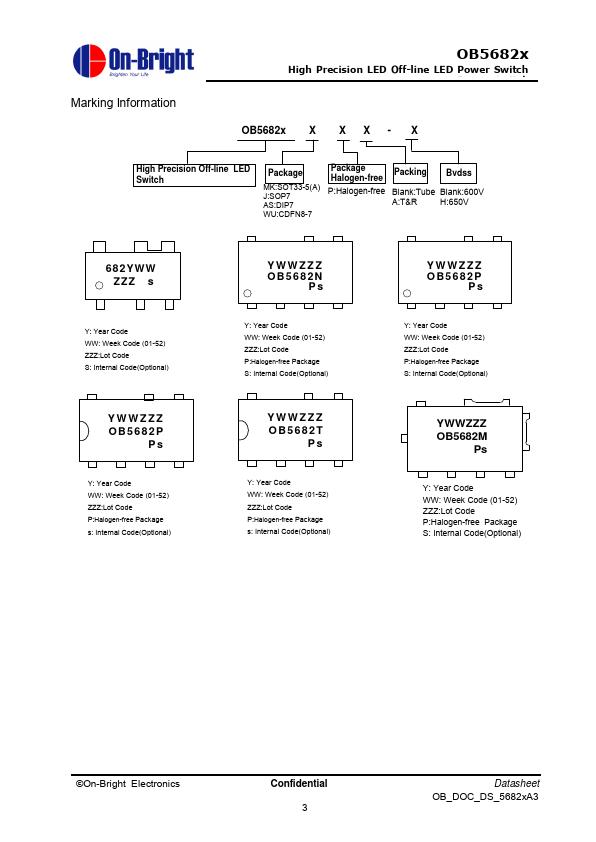

datasheet Preview Page 3

Datasheet Details

Part number: OB5682PJP, OB5682MMKP-H-On
Manufacturer: On-Bright
File Size: 972.15 KB
Datasheet: OB5682MMKP-H-On-Bright.pdf
Description: High Precision LED Off-line LED Power Switch
Note: This datasheet PDF includes multiple part numbers: OB5682PJP, OB5682MMKP-H-On.
Please refer to the document for exact specifications by model.

OB5682PJP Product details

Description

OB5682x is a primary side regulation off-line LED lighting power switch which can achieve accurate LED current.

Features

including LED open circuit protection, LED short circuit protection, Cycle-by-Cycle current limiting, and thermal foldback, etc. OB5682x is offered in SOT33-5(A)/SOP7/DIP7/ CDFN8-7 package.
