LPS100A-7

LED Backlight Power Control

LPS100A-7 Features

* Low  Cost

*  Constant  Current  Led  Backlight  Driver  Board   Form  Factor  and  Control  Interface  compatible  to  existing  CCFL  Driver  Boards   3  /  4  wire  operat

LPS100A-7 General Description

The  Optillis  LPS100A  series  is  a  fixed  frequency  step-­‐up  DC/DC  converter  designed  to  drive  up  to  3  strings  of  LEDs  from  a   12V  supply.  This  board  was  designed  to  work  with  displays  from  the  Optrex.

LPS100A-7 Datasheet (207.33 KB)

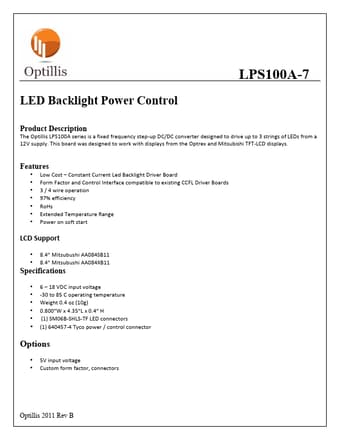

Preview of LPS100A-7 PDF

Datasheet Details

Part number:

LPS100A-7

Manufacturer:

Optillis

File Size:

207.33 KB

Description:

Led backlight power control.
