DMC40457NY-LY LCD Module

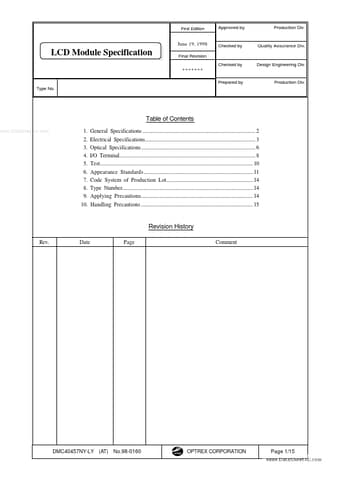

First Edition Approved by Production Div. June 19, 1998 Checked by Quality Assurance Div. LCD Module Specification Final Revision Checked by Design Engineering Div. Type No. ‚c‚l‚b‚S‚O‚S‚T‚V‚m‚x |‚k‚x Prepared by Production Div. Table of Contents www.DataSheet4U.com 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. General Specifications 2 Electrical Specifications 3 Optical Specifications 6 I/O Terminal 8 Test 10 Appearance Standards 11 Code System of Pr.
