DMC4015SSD MOSFET

Diodes

Description

NAEDWVAPNRCOED IUNCFTORMATION DMC4015SSD COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device V(BR)DSS Q1 40V Q2 -40V RDS(ON) 15m.
Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, wh.

📥 Download Datasheet

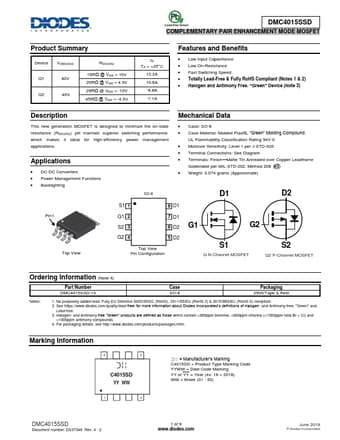

DMC4015SSD Datasheet Preview — Preview of DMC4015SSD PDF

Datasheet Specifications

Part number: DMC4015SSD
Manufacturer: DIODES ↗
File Size: 549.77 KB
Datasheet: DMC4015SSD-Diodes.pdf
Description: MOSFET

Features

* Low Input Capacitance
* Low On-Resistance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Applications

* Applications
* DC-DC Converters
* Power Management Functions
* Backlighting SO-8
* Case: SO-8
* Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020
* Terminal Connections:
