* Matched N & P RDS(ON)
* Minimizes Power Losses
* Fast Switching
* Minimizes Switching Losses
* Dual Device
* Reduces PCB Area
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to
DMC4050SSD Datasheet (383.99 KB)
DMC4050SSD
383.99 KB
Mosfet.

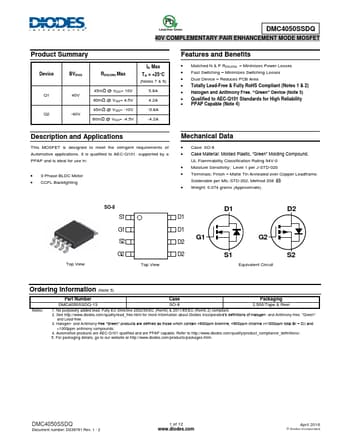

DMC4050SSDQ
40V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device Q1 Q2
BVDSS 40V -40V
RDS(ON) Max
45mΩ @ VGS= 10V 60mΩ @ VGS= 4.5.
