* x Matched N & P RDS(ON)
* Minimizes Power Losses x Fast Switching
* Minimizes Switching Losses x Dual Device
* Reduces PCB Area x Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) x Halogen and Antimony Free. “Green” Device (Note 3) x Qualified to AEC-Q101 Standards for

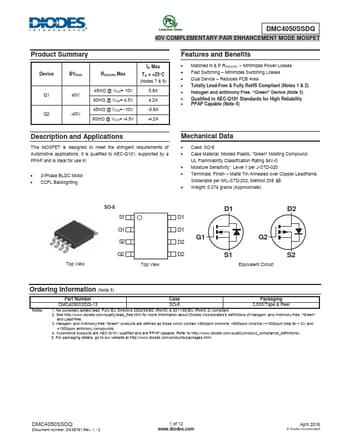

DMC4050SSDQ Datasheet (282.67 KB)
DMC4050SSDQ
282.67 KB
40v complementary pair enhancement mode mosfet.
DMC4050SSDQ
40V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device Q1 Q2
BVDSS 40V -40V
RDS(ON) Max
45mΩ @ VGS= 10V 60mΩ @ VGS= 4.5.
