* 100% Unclamped Inductive Switching, Test in Production
* Ensures More Reliable and Robust End Application
* High Conversion Efficiency
* Low RDS(ON)
* Minimizes On State Losses
* Low Input Capacitance
* Fast Switching Speed
* Wettable Flank for Improved Optic
DMC1018UPDWQ Datasheet (610.82 KB)
DMC1018UPDWQ
610.82 KB
Mosfet.

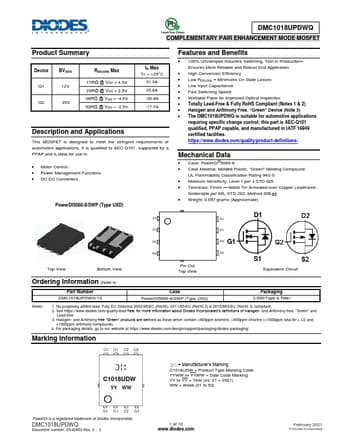

DMC1018UPDWQ
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device BVDSS
Q1
12V
Q2
-20V
RDS(ON) Max
17mΩ @ VGS = 4.5V 25mΩ @ VGS = .
