DMC1016UPD Datasheet, Mosfet, Diodes

DMC1016UPD Features

  • Mosfet Device V(BR)DSS Q1 12V Q2 -20V RDS(ON) 17mΩ @ VGS = 4.5V 25mΩ @ VGS = 2.5V 20mΩ @ VGS = -4.5V 25mΩ @ VGS = -2.5V ID TA = +25°C 9.5A 7.8A -8.7A -7.8A Description and Applications

PDF File Details

Part number:

DMC1016UPD

Manufacturer:

DIODES ↗

File Size:

493.99kb

Download:

📄 Datasheet

Description:

Mosfet. and Applications This new generation Complementary Pair Enhancement Mode MOSFET has been designed to minimize RDS(ON) and yet maintai

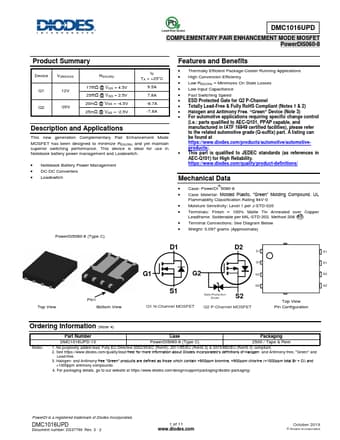

Datasheet Preview: DMC1016UPD 📥 Download PDF (493.99kb)
Page 2 of DMC1016UPD Page 3 of DMC1016UPD

DMC1016UPD Application

  • Applications This new generation Complementary Pair Enhancement Mode MOSFET has been designed to minimize RDS(ON) and yet maintain superior switchin
