DMC1028UFDB Datasheet, Mosfet, Diodes

DMC1028UFDB Features

  • Mosfet Device BVDSS Q1 N-Channel 12V Q2 P-Channel -20V Description RDS(ON) max 25mΩ @ VGS = 4.5V 30mΩ @ VGS = 3.3V 32mΩ @ VGS = 2.5V 80mΩ @ VGS = -4.5V 90mΩ @ VGS = -3.3V 100mΩ @ VGS =

PDF File Details

Part number:

DMC1028UFDB

Manufacturer:

DIODES ↗

File Size:

545.07kb

Download:

📄 Datasheet

Description:

Mosfet. RDS(ON) max 25mΩ @ VGS = 4.5V 30mΩ @ VGS = 3.3V 32mΩ @ VGS = 2.5V 80mΩ @ VGS = -4.5V 90mΩ @ VGS = -3.3V 100mΩ @ VGS = -2.5V ID max

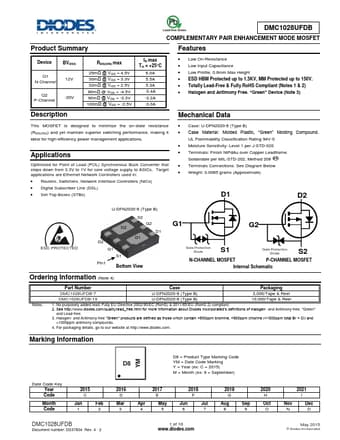

Datasheet Preview: DMC1028UFDB 📥 Download PDF (545.07kb)
Page 2 of DMC1028UFDB Page 3 of DMC1028UFDB

DMC1028UFDB Application

  • Applications Applications Optimized for Point of Load (POL) Synchronous Buck Converter that steps down from 3.3V to 1V for core voltage supply to A
