DMC2058UDVW Datasheet, Mosfet, DIODES

DMC2058UDVW Features

  • Mosfet Device Q1 Q2 BVDSS 20V -20V RDS(ON) Max 35mΩ @ VGS = 10V 40mΩ @ VGS = 4.5V 120mΩ @ VGS = -4.5V 150mΩ @ VGS = -2.5V ID Max TC = +25°C 5.5A 5.1A -3.0A -2.6A Description This new gene

PDF File Details

Part number:

DMC2058UDVW

Manufacturer:

DIODES ↗

File Size:

561.42kb

Download:

📄 Datasheet

Description:

Complementary pair enhancement mode mosfet. This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, mak

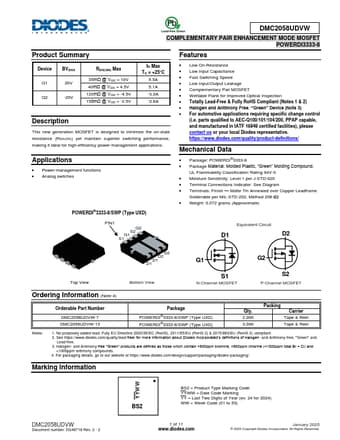

Datasheet Preview: DMC2058UDVW 📥 Download PDF (561.42kb)
Page 2 of DMC2058UDVW Page 3 of DMC2058UDVW

DMC2058UDVW Application

  • Applications Applications
  • Power-management functions
  • Analog switches POWERDI®3333-8/SWP (Type UXD)
  • Low On-Resistanc
