* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Complementary Pair MOSFET
* Ultra-Small Surface Mount Package
* ESD-Protected
* Totally Lead-Free & Ful

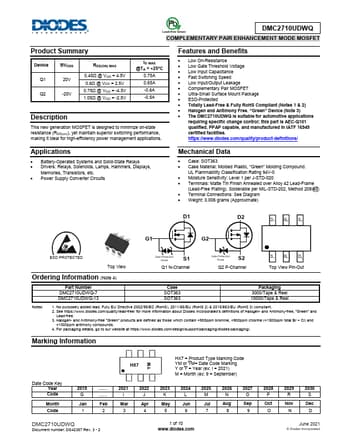

DMC2710UDWQ Datasheet (465.19 KB)
DMC2710UDWQ
465.19 KB
Mosfet.
DMC2710UDWQ
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device Q1 Q2
BVDSS 20V -20V
RDS(ON) MAX
0.45Ω @ VGS = 4.5V 0.6Ω @ VGS = 2.5.
