DMC2710UVT - 20V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET

DMC2710UVT Description

DMC2710UVT 20V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q1 Q2 BVDSS 20V -20V RDS(ON) Max 0.4Ω @ VGS = 4.5V 0.5Ω @ VGS = 2.
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency.

DMC2710UVT Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Complementary Pair MOSFET
* Ultra-Small Surface Mount Package
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free.

DMC2710UVT Applications

* Applications

📥 Download Datasheet

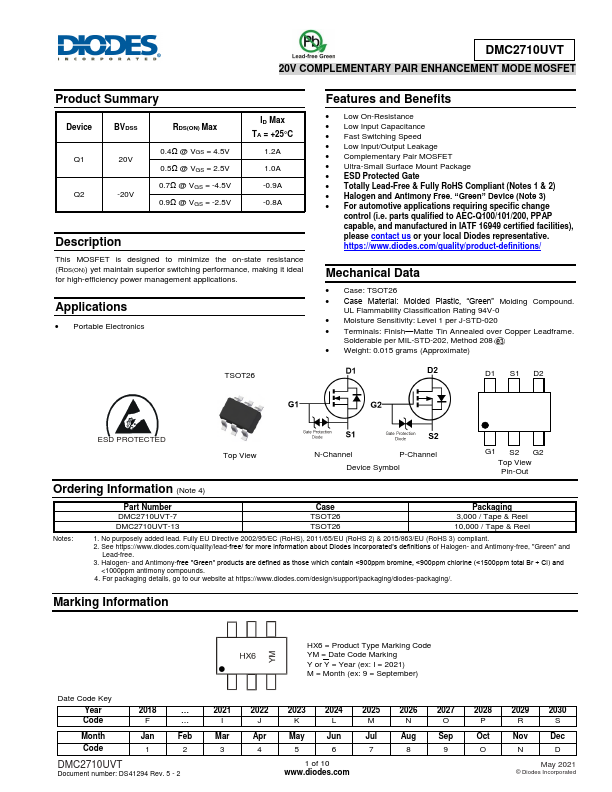

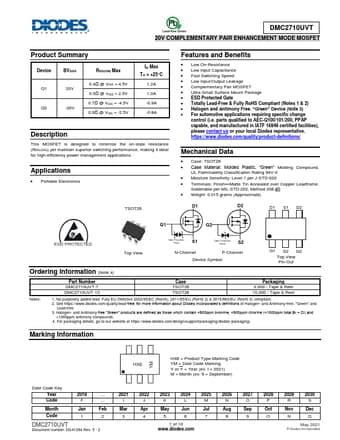

Preview of DMC2710UVT PDF

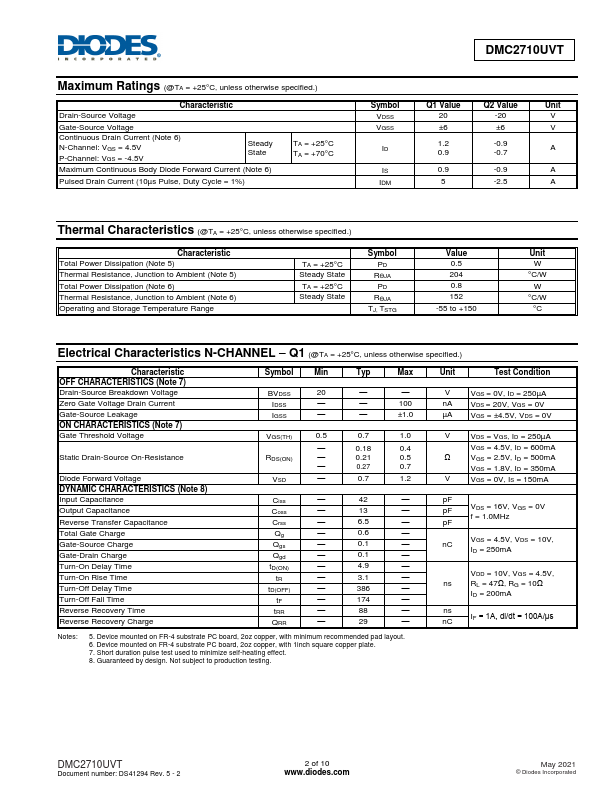

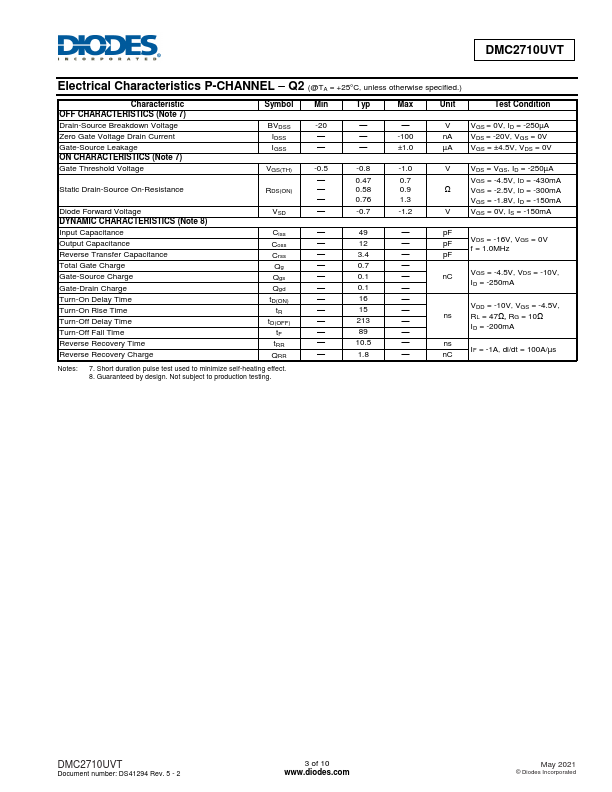

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DMC2710UVT
Manufacturer
DIODES ↗
File Size
672.76 KB
Datasheet
DMC2710UVT-DIODES.pdf
Description
20V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
