DMC2020USD

20V MOSFET

DMC2020USD Features

* Reduced footprint with two discretes in a single SO8

* Low gate drive

* Low input capacitance

* Fast Switching Speed

* Low Input/Output Leakage

* ESD Protected up to 2kV

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” De

DMC2020USD General Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
* Motor control
* DC-DC Converters
* Power management functions
* Notebook .

DMC2020USD Datasheet (464.09 KB)

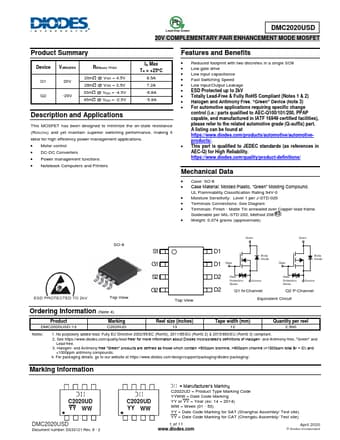

Preview of DMC2020USD PDF

Datasheet Details

Part number:

DMC2020USD

Manufacturer:

DIODES ↗

File Size:

464.09 KB

Description:

20v mosfet.
DMC2020USD 20V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q1 Q2 V(BR)DSS 20V -20V RDS(on) max 20m @ VGS = 4.5V 28m @ VGS .
