DMC2041UFDB

MOSFET

DMC2041UFDB Features

* Low On-Resistance

* Low Input Capacitance

* Low Profile, 0.6mm Max Height

* ESD protected Gate

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data

* Case: U-DFN2020-6

* Case Material: Molded P

DMC2041UFDB General Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications
* Load Switch
* Power Management Functions
* Portable Power Adaptors U-DFN2020-6 ESD P.

DMC2041UFDB Datasheet (485.36 KB)

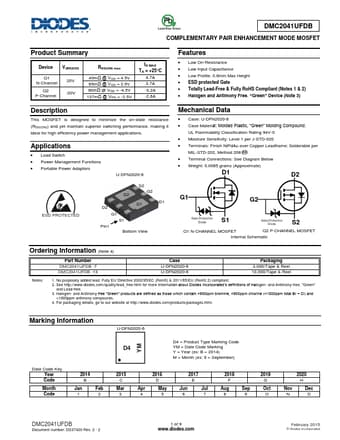

Preview of DMC2041UFDB PDF

Datasheet Details

Part number:

DMC2041UFDB

Manufacturer:

DIODES ↗

File Size:

485.36 KB

Description:

Mosfet.
DMC2041UFDB COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device V(BR)DSS Q1 N-Channel Q2 P-Channel 20V -20V RDS(ON) max 40mΩ @ VGS .
