OCP8155 Datasheet - Orient Chip

OCP8155 High Precision Primary-side Feedback Constant Current Converter

OCP8155 is a high precision constant current LED driver IC with an integrating 650V power MOSFET, designed for offline flyback constant current LED lighting within 18W output power, and suitable for universal input voltage from 85VAC to 265VAC. IC adopts DIP-8L package. OCP8155 utilizes primary-side.

OCP8155-OrientChip.pdf

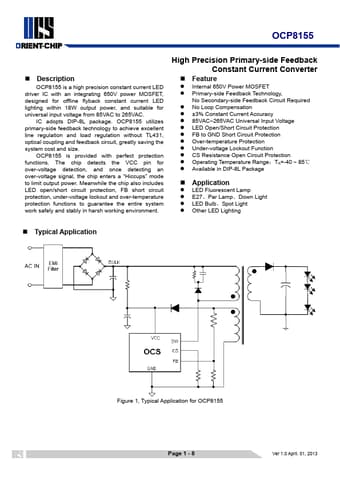

Preview of OCP8155 PDF
OCP8155 Datasheet Preview Page 2 OCP8155 Datasheet Preview Page 3

Datasheet Details

Part number:

OCP8155

Manufacturer:

Orient Chip

File Size:

261.11 KB

Description:

High precision primary-side feedback constant current converter.
