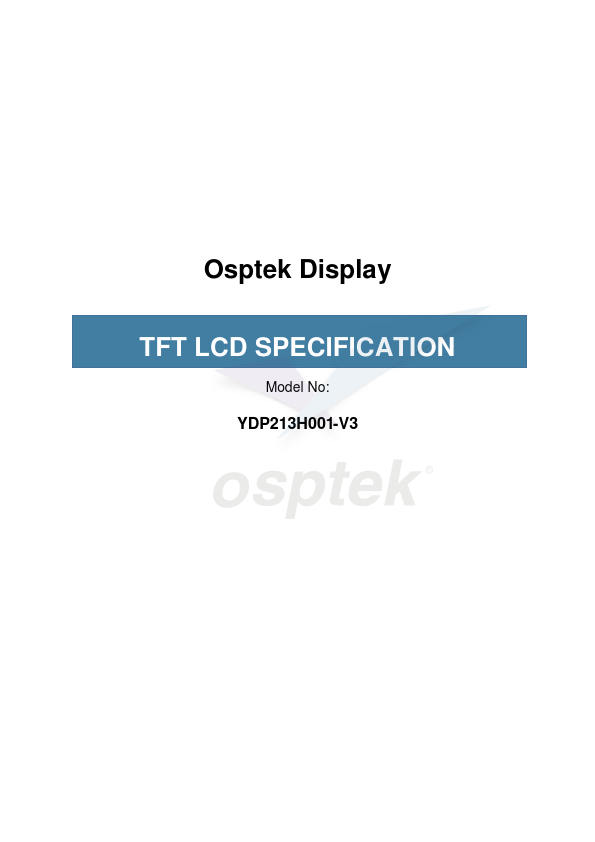

YDP213H001-V3 Datasheet - Osptek

YDP213H001-V3 - TFT LCD

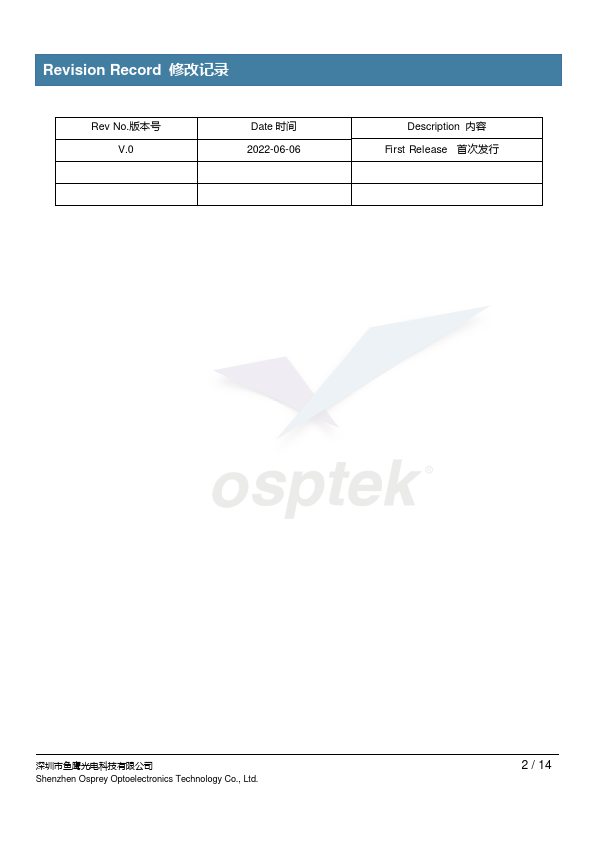

First Release Shenzhen Osprey Optoelectronics Technology Co., Ltd.

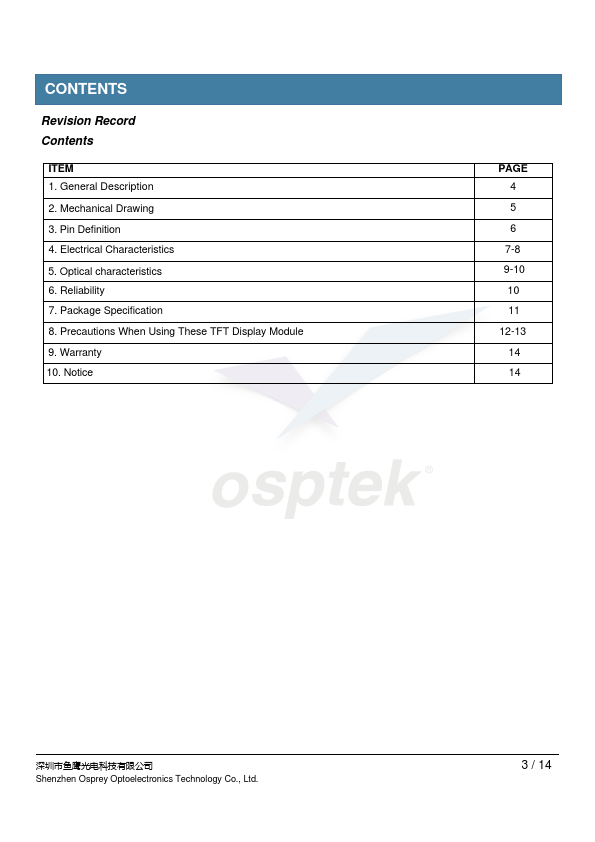

2 / 14 CONTENTS Revision Record Contents ITEM 1.

General Description 2.

Mechanical Drawing 3.

Pin Definition 4.

Electrical Characteristics 5.

Optical characteristics 6.

Reliability 7.

Package Specification 8.

Precautions When U

YDP213H001-V3 Features

* NO. Item 1 LCD Size 2 Display Mode 3 Resolution 4 Dot pitch 5 Active area 6 Module size 7 Interface 8 Drive IC 9 Operating Temp. 10 Storage Temp. 11 Weight Contents 2.13 Mono TFT/Normally White/ Reflective 122(H) x 250(V) 0.194(H) x 0.194(V) 23.668(H) x 48.5(V) 27.07(H) x 56.2(V) x1.1(D) 4
