YDP280BT001-V4 Datasheet - Osptek

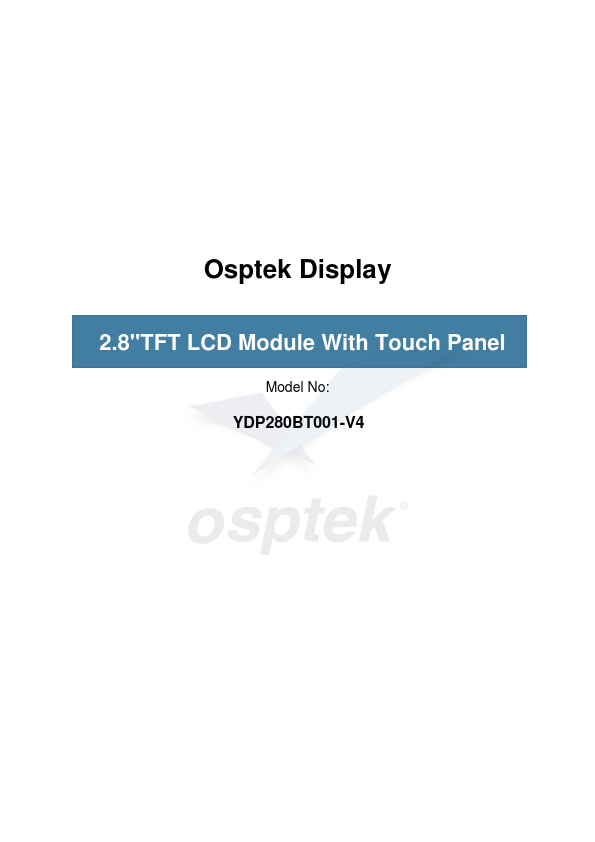

YDP280BT001-V4 TFT LCD

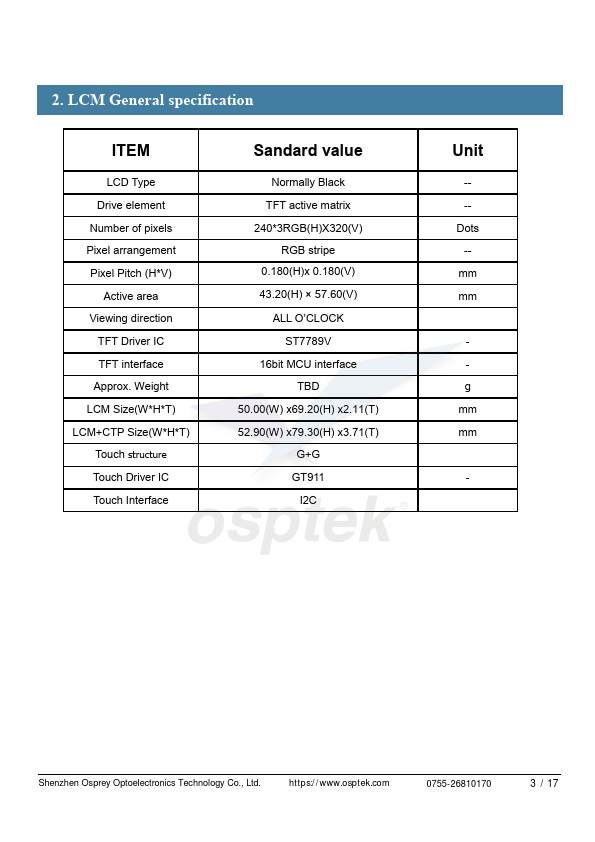

1 RST 2 INT 3.3V 3 VDD 3.3V 4 SCL 3.3V 5 SDA 3.3V 6 GND 1.Driver IC:GT911 G+G Multi-Touch 2.Power Voltage：3.3V 3.Interface Signal Voltage：3.3V 4.Light Transmission：≥85％ 5.Surface Hardness：6H 6.Operating Temperature：-20℃~+60℃，≤90%RH 7.Storage Temperature：-30℃~+70℃，≤90%RH 8.Critical Dimensions: .

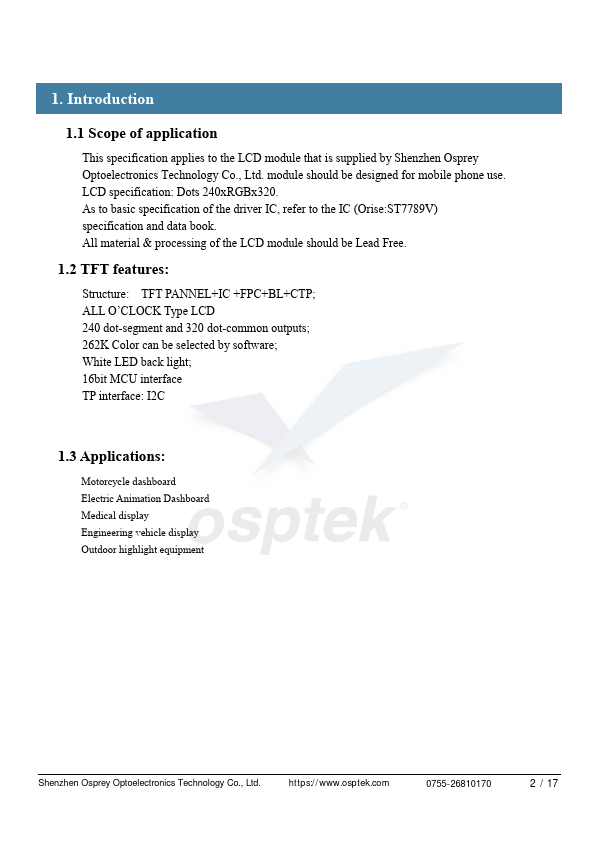

Osptek Display 2.8''TFT LCD Module With Touch Panel Model No: YDP280BT001-V4 1. Introduction 1.1 Scope of application This specification applies to the LCD module that is supplied by Shenzhen Osprey Optoelectronics Technology Co., Ltd. module should be designed for mobile phone use. LCD specification: Dots 240xRGBx320. As to basic specification of the driver IC, refer to the IC (Orise:ST7789V) specification and data book. All material & processing of the LCD module should be Lead Free. 1.2 TFT .

YDP280BT001-V4 Features

* Structure: TFT PANNEL+IC +FPC+BL+CTP; ALL O’CLOCK Type LCD 240 dot-segment and 320 dot-common outputs; 262K Color can be selected by software; White LED back light; 16bit MCU interface TP interface: I2C 1.3 Applications: Motorcycle dashboard Electric Animation Dashboard Medical display Engineering
