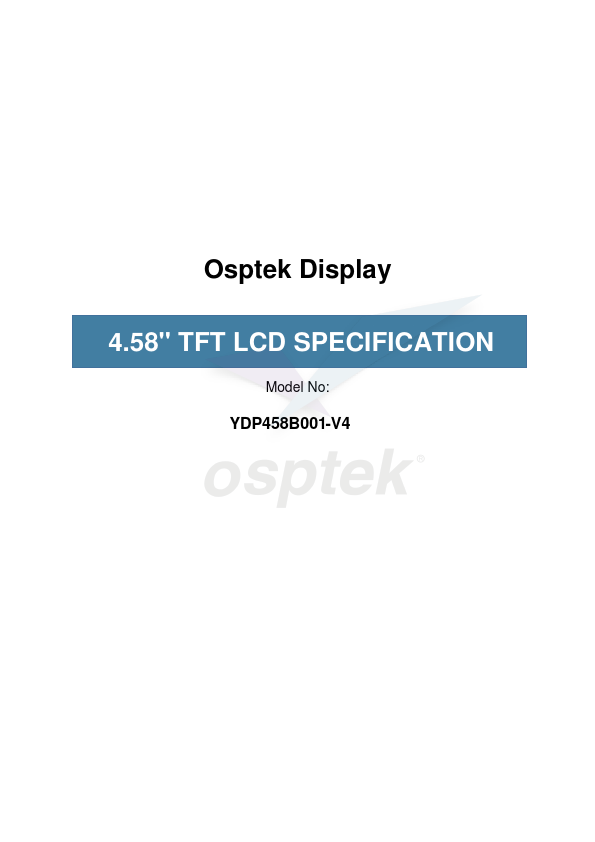

YDP458B001-V4 Datasheet - Osptek

TFT LCD

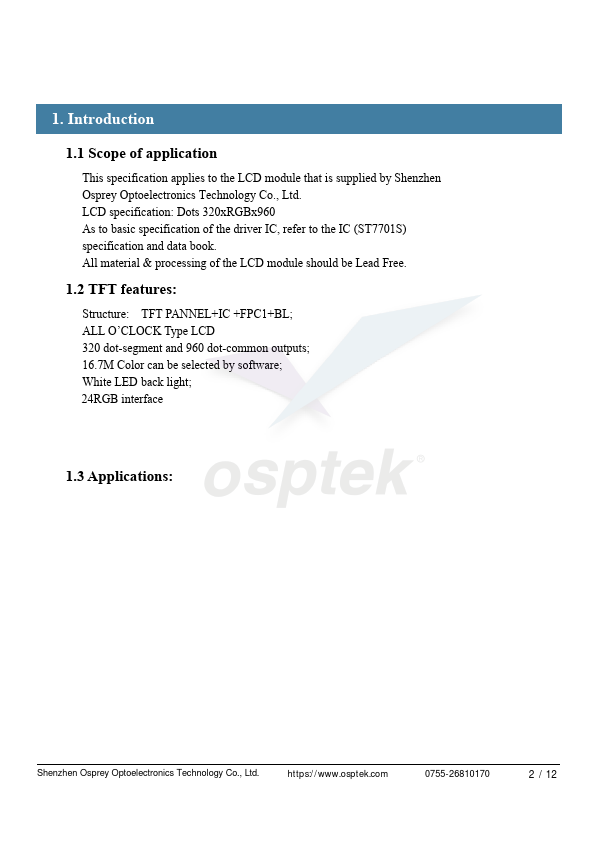

YDP458B001-V4 Features

* Structure: TFT PANNEL+IC +FPC1+BL; ALL O’CLOCK Type LCD 320 dot-segment and 960 dot-common outputs; 16.7M Color can be selected by software; White LED back light; 24RGB interface 1.3 Applications: Shenzhen Osprey Optoelectronics Technology Co., Ltd. https://www.osptek.com 0755-26810170 2 / 12

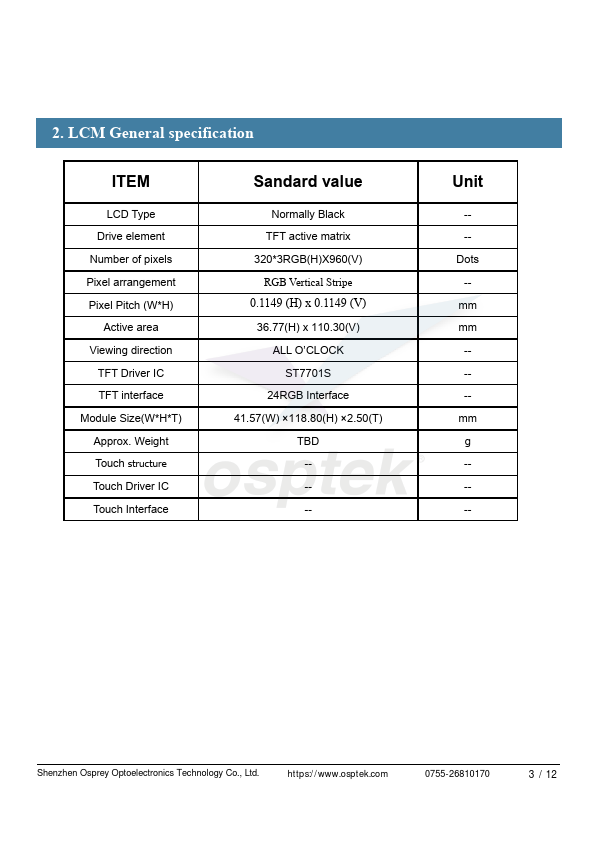

YDP458B001-V4 General Description

DRG DATE DRAWN BY First Desing 2022.04.19 FPC YDP458B001-V4 N0. SYMBOL 01 LEDA 02 LEDK 03 VCC(3.3V) 04 GND 05 GND 06 DEN 07 VSYNC 08 HSYNC 09 CLK 10 B7 11 B6 12 B5 13 B4 14 B3 15 B2 16 B1 17 B0 18 G7 19 G6 20 G5 21 G4 22 G3 23 G2 24 G1 25 G0 26 R7 27 R6 28 R5 29 R4 30 R3 31 R2 32 R1 33 R0.

YDP458B001-V4 Datasheet (946.29 KB)

YDP458B001-V4 Datasheet Preview — Preview of YDP458B001-V4 PDF

Datasheet Details

Part number:

YDP458B001-V4

Manufacturer:

Osptek

File Size:

946.29 KB

Description:

Tft lcd.
Osptek Display 4.58'' TFT LCD SPECIFICATION Model No: YDP458B001-V4 1. Introduction 1.1 Scope of application This specification applies to the LCD mo.
