SCDQ5541 Datasheet - Osram Opto Semiconductors

SCDQ5541 (SCDQ5541x - SCDQ5544x) Intelligent Display / 0.134 Inch / 4-Character / 5 X 5 Dot Matrix

The SCDQ5541X (Yellow), SCDQ5542X (High Efﬁciency Red), SCDQ5543X (Green), and SCDQ5544X (High Efﬁciency Green) are four digit, dot addressable 5x5 dot matrix, serial input, alphanumeric Intelligent Display devices in a square format. The four digits are packaged in a rugged, high quality, optically.

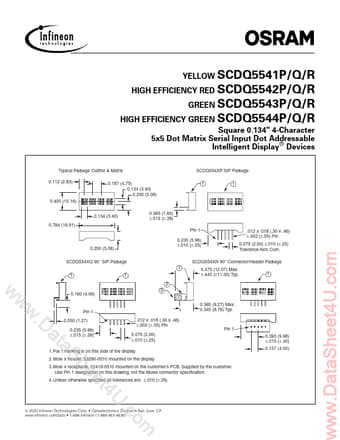

YELLOW SCDQ5541P/Q/R HIGH EFFICIENCY RED SCDQ5542P/Q/R GREEN SCDQ5543P/Q/R HIGH EFFICIENCY GREEN SCDQ5544P/Q/R Square 0.134" 4-Character 5x5 Dot Matrix Serial Input Dot Addressable Intelligent Display® Devices Typical Package Outline & Matrix 0.112 (2.83) 0.187 (4.75) 0.134 (3.40) 0.200 (5.08) SCDQ554XP SIP Package 1 1 0.400 (10.16) 0.134 (3.40) 0.784 (19.91) Pin 1 0.235 (5.96) ±.010 (±.25) .012 x .018 (.30 x .46) ±.002 (±.05) Pin 0.079 (2.00) ±.010 (±.25) Tolerance-Non Cum. 0.065 (1.65) ±.015 .

SCDQ5541 Features

* Four 0.134" (3.40 mm) 5x5 Dot Matrix Characters in Yellow, High Efﬁciency Red, Green, or High Efﬁciency Green

* Optimum Display Surface Efﬁciency (display area to package ratio)

* Square Character Format to Display Data in a Vertical or Horizontal Format

* High Spee

SCDQ5541_OsramOptoSemiconductors.pdf

SCDQ5541 Datasheet Preview — Preview of SCDQ5541 PDF

Datasheet Details

Part number:

SCDQ5541

Manufacturer:

Osram Opto Semiconductors

File Size:

1.00 MB

Description:

(scdq5541x - scdq5544x) intelligent display / 0.134 inch / 4-character / 5 x 5 dot matrix.
