PC4002A-L Datasheet, Display, P-tec

PC4002A-L Features

  • Display
  • 40 Character, 2 Line
  • View Angle 12H or 6H
  • TN or STN Fluid
  • Extended Temperature Range available
  • Several Character Types available

PDF File Details

Part number:

PC4002A-L

Manufacturer:

P-tec

File Size:

103.77kb

Download:

📄 Datasheet

Description:

40 x 2 character lcd display.

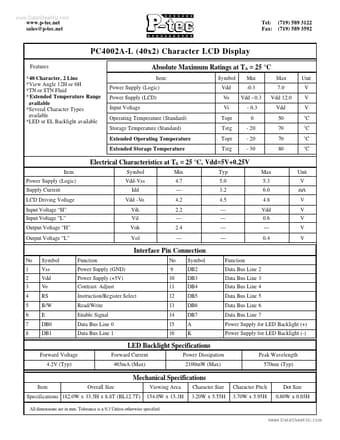

Datasheet Preview: PC4002A-L 📥 Download PDF (103.77kb)
Page 2 of PC4002A-L Page 3 of PC4002A-L
