pc4002b Datasheet - POWERTIP

pc4002b LCD_Module

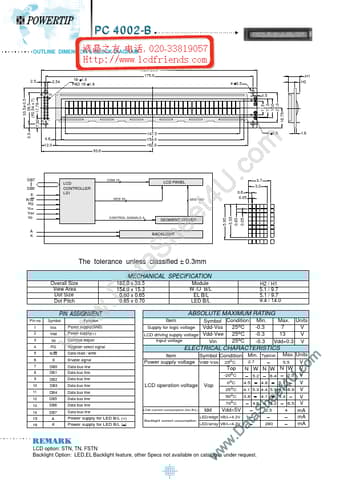

PC 4002-B OUTLINE DIMENSION & BLOCK DIAGRAM 182.0 0.5 175.0 2.5 16 15 2.54 16- 1.0 PAD 16- 1.8 4- 3.5 1.5 A 11.5 15.3 16.0 25.0 H1 H2 33.5 0.5 26.5 (P2.54 x 7) 17.78 7.92 K 2 1 16.75 4.6 12.0 93.6 147.5 154.0 162.0 3.5 DB7 DB0 E R/W RS Vss Vdd Vo LCD CONTROLLER LS1 COM 16 LCD PANEL SEG 40 SEG 160 5.95 5.55 0.65 SEGMENT DRIVER A K BACKLIGHT The tolerance unless classified Overall Size View Area Dot Size Dot Pitch MECHANICAL SPECIFICATION PIN ASSIGNMENT Pin no. 1 2 3 4 5 6 .

pc4002b Datasheet (116.34 KB)

pc4002b Datasheet Preview — Preview of pc4002b PDF

Datasheet Details

Part number:

pc4002b

Manufacturer:

POWERTIP

File Size:

116.34 KB

Description:

Lcd_module.
