DF10 SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS

DF10 Description

DF005 thru DF10 SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS VOLTAGE - 50 TO 1000 VOLTS CURRENT - 1.0 AMPERES .

DF10 Applications

* Low Forward Voltage drop Reliable low cost construction utilizing molded Plastic technique Plastic package has Underwriters Laboratory Flammability Classification 94V-0 High temperature soldering guaranteed 260oC/10seconds at 5lbs. (2.3kg) tension MECHANICAL DATA Case Molded plastic body over passi

📥 Download Datasheet

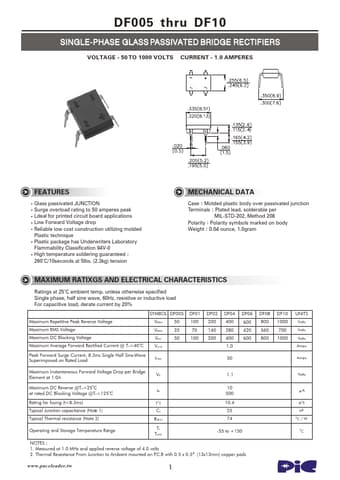

Preview of DF10 PDF
datasheet Preview Page 2

Datasheet Details

Part number
DF10
Manufacturer
PACELEADER
File Size
131.55 KB
Datasheet
DF10-PACELEADER.pdf
Description
SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS
