SB1080CT, SB1020CT SCHOTTKY BARRIER RECTIFIER

SB1080CT Description

SB1020CT thru SB10150CT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 150 VOLTS CURRENT - 10 AMPERES TO-220AB .

SB1080CT Features

* Schottky Barrier Chip Guard Ring Transient Protection High Current Capability, Low Forward Low Reverse Leakage Current High surge Current Capability Plastic Material has UL Flammability Classification 94V-0 High temperature soldering 260oC/10seconds at terminals Pb free product are available 99% Sn

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1080CT, SB1020CT. Please refer to the document for exact specifications by model.

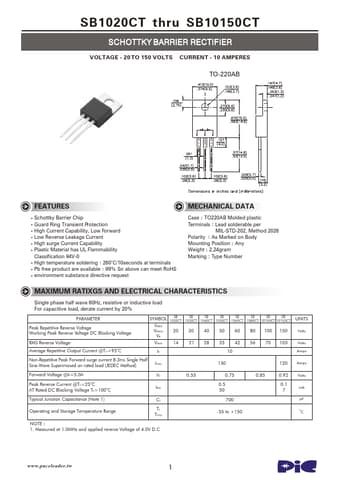

datasheet Preview Page 2

Datasheet Details

Part number
SB1080CT, SB1020CT
Manufacturer
PACELEADER
File Size
278.46 KB
Datasheet
SB1020CT-PACELEADER.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB1080CT, SB1020CT.
Please refer to the document for exact specifications by model.
