SK54, SK52 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SK54 Description

SK52 thru SK56 6 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 60 VOLTS CURRENT - 5.0 AMPERES SMA/DO-214AC .055(1.40) .062(1.60) .098(2.

SK54 Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC MECHANICAL DATA ‧Case: DO-214AC (SMA) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK54, SK52. Please refer to the document for exact specifications by model.

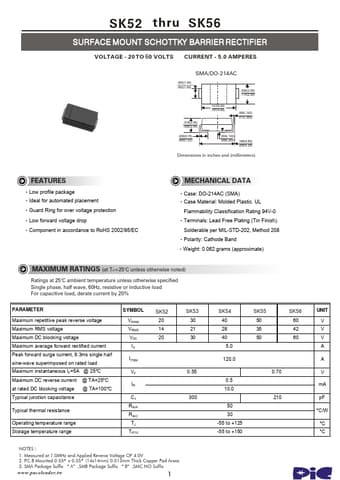

datasheet Preview Page 2

Datasheet Details

Part number
SK54, SK52
Manufacturer
PACELEADER
File Size
281.99 KB
Datasheet
SK52-PACELEADER.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SK54, SK52.
Please refer to the document for exact specifications by model.
