1SMC5334 - SURFACE MOUNT SILICON ZENER DIODES

1SMC5334 Description

1SMC5334 SERIES SURFACE MOUNT SILICON ZENER DIODES VOLTAGE 3.6 ~ 51 Volt CURRENT 5 Watt .

1SMC5334 Applications

* in order to optimize board space.
* Glass passivated junction
* Low inductance
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249

📥 Download Datasheet

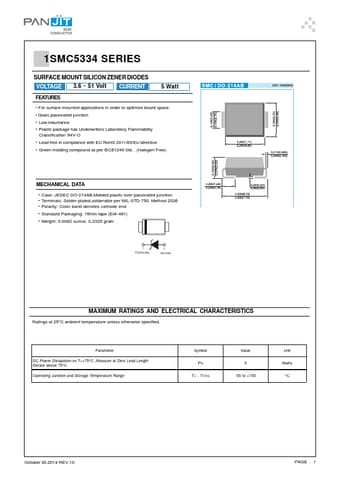

Preview of 1SMC5334 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SMC5334
Manufacturer
PAN JIT
File Size
130.49 KB
Datasheet
1SMC5334-PANJIT.pdf
Description
SURFACE MOUNT SILICON ZENER DIODES
