GBPC2504, GBPC25005-PAN, HIGH CURRENT SILICON BRIDGE RECTIFIER

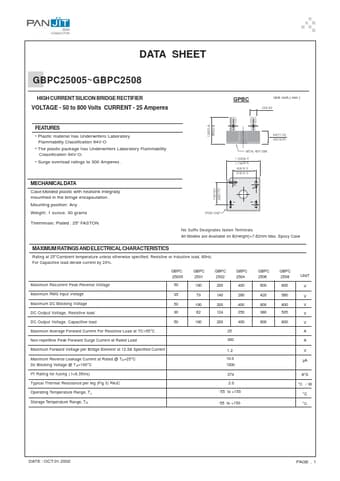

DATA SHEET GBPC25005~GBPC2508 HIGH CURRENT SILICON BRIDGE RECTIFIER VOLTAGE - 50 to 800 Volts CURRENT - 25 Amperes GPBC Unit: inch ( mm ) .25(6.35).

GBPC25005-PAN-JIT.pdf

GBPC2504 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC2504, GBPC25005-PAN. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBPC2504, GBPC25005-PAN

Manufacturer:

PAN-JIT

File Size:

32.30 KB

Description:

HIGH CURRENT SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: GBPC2504, GBPC25005-PAN.
Please refer to the document for exact specifications by model.

Features

* Plastic material has Underwriters Laboratory Flammability Classification 94V-O
* The plastic package has Underwriters Laboratory Flammability Classification 94V-O.
* Surge overload ratings to 300 Amperes . MECHANICALDATA Case:Molded plastic with heatsink integrally mounthed
