MMBZ5260BTW, MMBZ5221BTW, SURFACE MOUNT SILICON ZENER DIODES

MMBZ5221BTW~MMBZ5262BTW SURFACE MOUNT SILICON ZENER DIODES VOLTAGE 2.4 to 51 Volts POWER 200 mWatts .

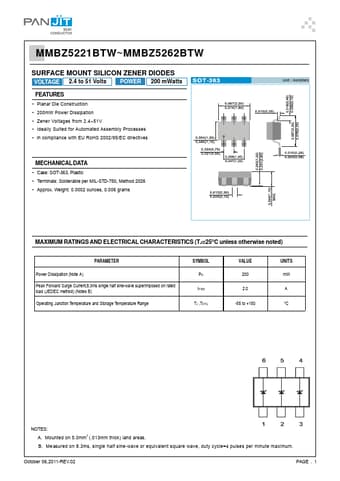

datasheet Preview Page 1 from Datasheet4u.com

MMBZ5221BTW-PANJIT.pdf

MMBZ5260BTW Datasheet Preview — This datasheet PDF includes multiple part numbers: MMBZ5260BTW, MMBZ5221BTW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MMBZ5260BTW, MMBZ5221BTW

Manufacturer:

PAN JIT

File Size:

229.12 KB

Description:

SURFACE MOUNT SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: MMBZ5260BTW, MMBZ5221BTW.
Please refer to the document for exact specifications by model.

Features

* Planar Die Construction
* 200mW Power Dissipation
* Zener Voltages from 2.4~51V
* Ideally Suited for Automated Assembly Processes
* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case: SOT-363, Plastic
* Terminals: Soldera
