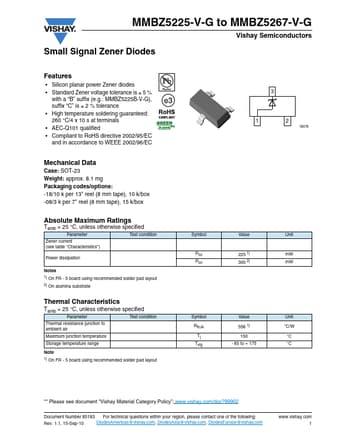

MMBZ5260-V-G, MMBZ5225-V-G - Small Signal Zener Diodes

Vishay

Datasheet Details

Part number	MMBZ5260-V-G, MMBZ5225-V-G
Manufacturer	Vishay ↗
File Size	78.71 KB
Description	Small Signal Zener Diodes
Datasheet	MMBZ5225-V-G-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: MMBZ5260-V-G, MMBZ5225-V-G. Please refer to the document for exact specifications by model.

Silicon planar power Zener diodes.
Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e. g. : MMBZ5225B-V-G), suffix “C” is ± 2 % tolerance.
High temperature soldering guaranteed: 260 °C/4 x 10 s at terminals.
AEC-Q101 qualified.
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Mechanical Data Case: SOT-23 Weight: approx. 8.1 mg Packaging codes/options: -18/10 k per 13" reel (8 mm tape), 10 k/box -08/3 k per 7" ree.
