RS1JF, RS1AF Datasheet - PAN JIT

RS1JF SURFACE MOUNT FAST RECOVERY RECTIFIER

RS1JF Features

* For surface mounted applications in order to optimize board space

* Low profile package

* Easy pick and place

* Fast Recovery times for high efficiency

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

* Glass Passivated

RS1AF-PANJIT.pdf

This datasheet PDF includes multiple part numbers: RS1JF, RS1AF. Please refer to the document for exact specifications by model.

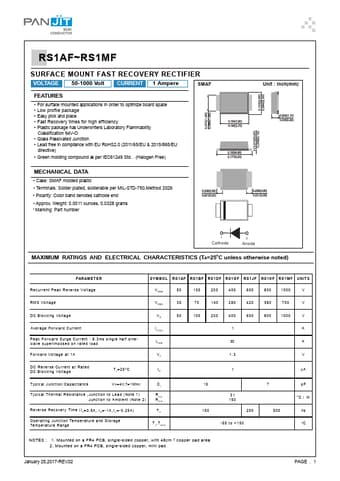

RS1JF Datasheet Preview Page 2 RS1JF Datasheet Preview Page 3

Datasheet Details

Part number:

RS1JF, RS1AF

Manufacturer:

PAN JIT

File Size:

1.12 MB

Description:

Surface mount fast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: RS1JF, RS1AF.
Please refer to the document for exact specifications by model.
