S5A SURFACE MOUNT RECTIFIER

PAN JIT

S5A Description

S5A SERIES SURFACE MOUNT RECTIFIER VOLTAGE 50~1000 Volt CURRENT 5 Ampere .

S5A Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

S5A Applications

* Easy pick and place
* Glass passivated iunction
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA
* Case: JEDEC SMC / DO-214AB molded plastic
* Terminals: Solde

📥 Download Datasheet

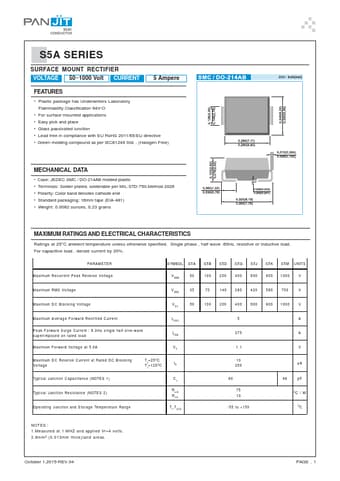

S5A Datasheet Preview — Preview of S5A PDF

Datasheet Details

Part number: S5A
Manufacturer: PAN JIT
File Size: 201.03 KB
Datasheet: S5A-PANJIT.pdf
Description: SURFACE MOUNT RECTIFIER
