SB180S, SB120S, SCHOTTKY BARRIER RECTIFIERS

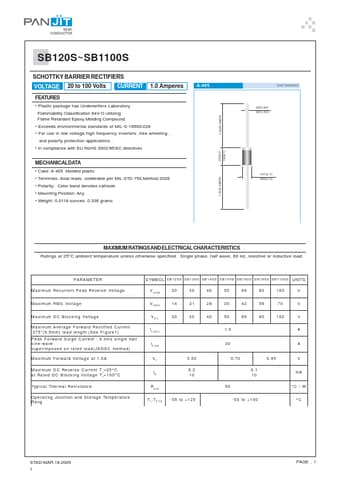

SB120S~SB1100S SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT 1.0 Amperes .

SB120S-PANJIT.pdf

SB180S Datasheet Preview — This datasheet PDF includes multiple part numbers: SB180S, SB120S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB180S, SB120S

Manufacturer:

PAN JIT

File Size:

48.17 KB

Description:

SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SB180S, SB120S.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* For use in low voltage,high frequency inverters ,free wheeling , and polarity protection ap

Applications

* .
* In compliance with EU RoHS 2002/95/EC directives MECHANICALDATA
* Case: A-405 Molded plastic
* Terminals: Axial leads, solderable per MIL-STD-750,Method 2026
* Polarity: Color band denotes cathode
* Mounting Position: Any
* Weight: 0.0118 ounces, 0
