BAT54WS - SURFACE MOUNT SCHOTTKY BARRIER

BAT54WS Product details

Features

  • Low turn-on voltage.
  • Fast switching.
  • PN junction guard ring for transient and ESD protection.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).

📥 Download Datasheet

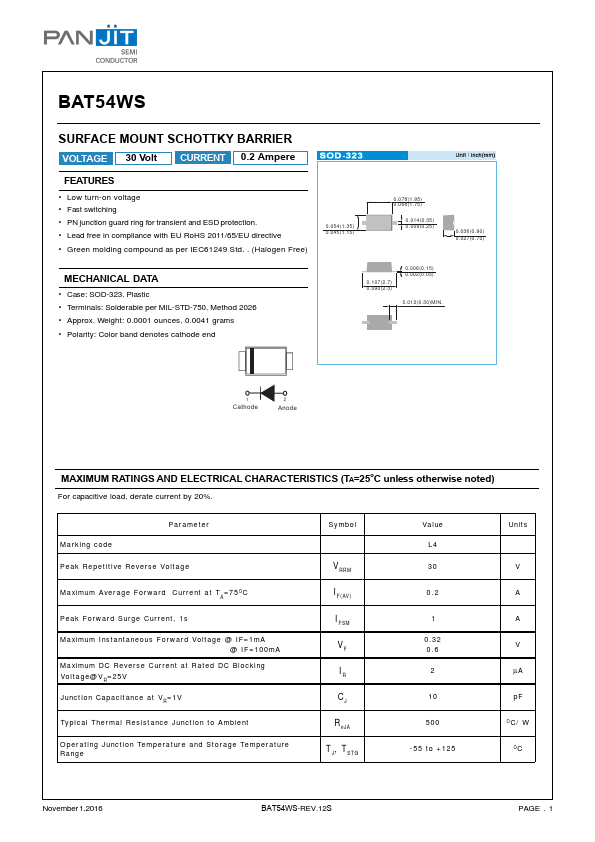

Preview of BAT54WS PDF

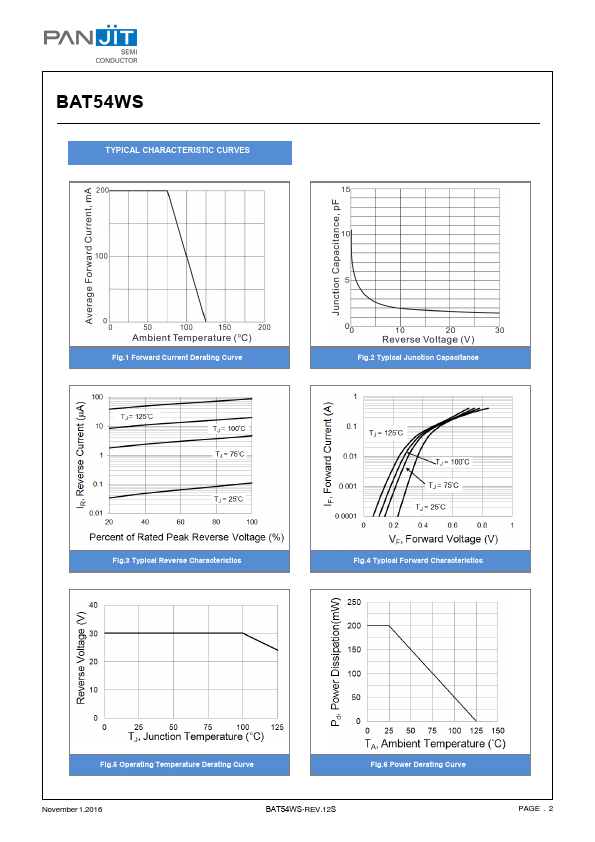

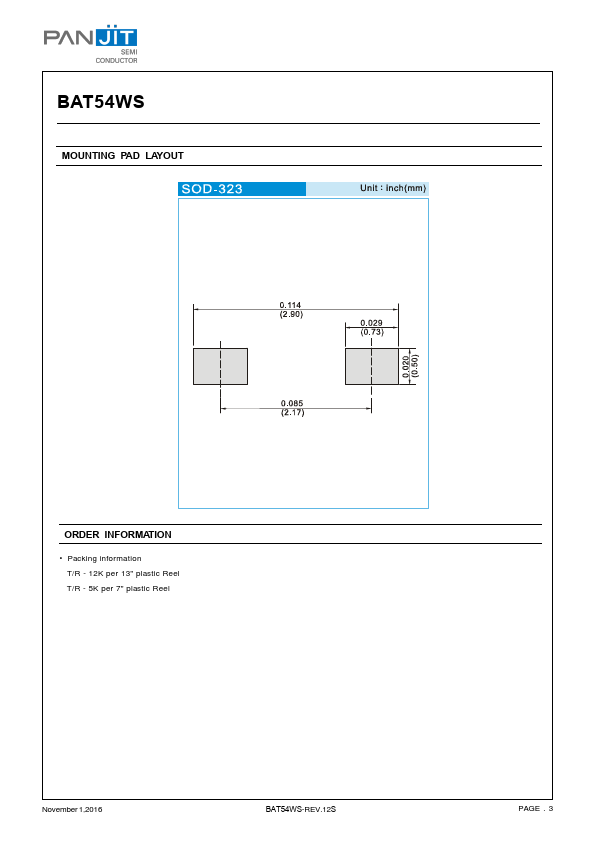

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT54WS
Manufacturer
PANJIT
File Size
275.87 KB
Datasheet
BAT54WS-PANJIT.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER
